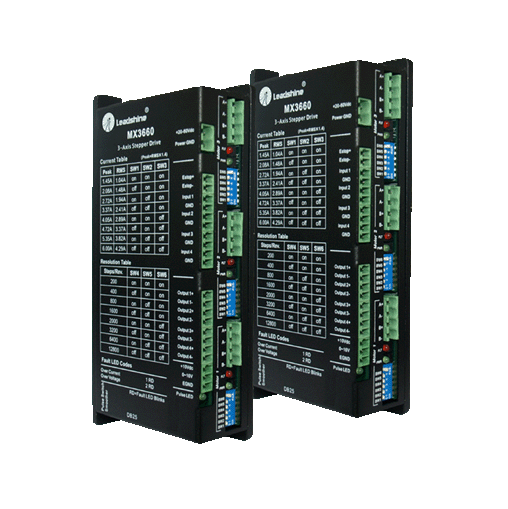

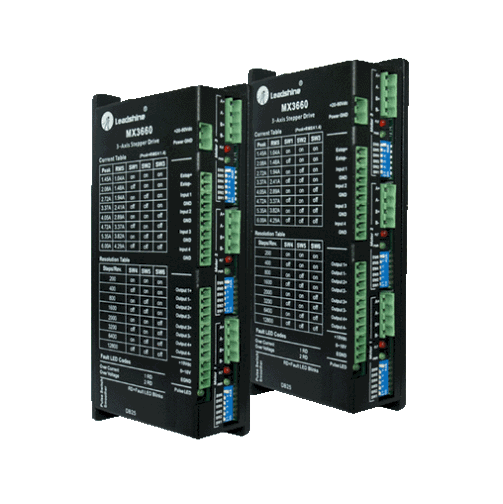

Tên: Multi-Axis Stepper Drives MX3660 (Cập nhật: 21/02/2014)
Khối lượng
0 (gam)
Thể tích
0 (cm3)
Số lượng Đơn giá
Còn lại
Lượt xem
Tài liệu
Thông tin sản phẩm:
Ẩn nội dung
Based on the latest DSP technology and adopting Leadshines' advanced control algorithms, Leadshine MX series was specially designed to allow easy and rapid implementation of multiple axis stepper solutions. With up to 60VDC working voltage and output current to 6.0A, Leadshine multi-axis stepper drives are capable of driving multiple 2 phase stepper motors in frame size 17, 23, 24, and 34. Leadshine multiple axis stepper strives can drive stepper systems at excellent low-to-high speed performance with high precision, extra low motor heating, smooth movement, and low motor noise. They are featured with anti resonance, multi stepping, digital smoothing, options of different configuration for each axis, automatic idle current reduction, and easy configurations of micro stepping and output currents via DIP switches. Their integrated breakout board and built-in IO's offer easy implementation for many applications at very effect costs.


  • Multiple Axis digital stepper drives built on latest DSP technology
  • Step & direction control
  • VDC working voltage up to 60 VDC
  • Output current up to 6.0A
  • Anti resonance for low and middle speed
  • Built-in breakout boards and IO's
  • DIP switches for micro step and output current configurations
  • Easy to install and simple to implement
  • Automatic idle current reduction to 50%
  • Able to drive NEMA 17, 23, 24, and 34 stepper motors
  • Direct connection to popular control systems like Mach3 and EMC
mx-(2).gif  available-muti.JPG
