Chi tiết sản phẩm

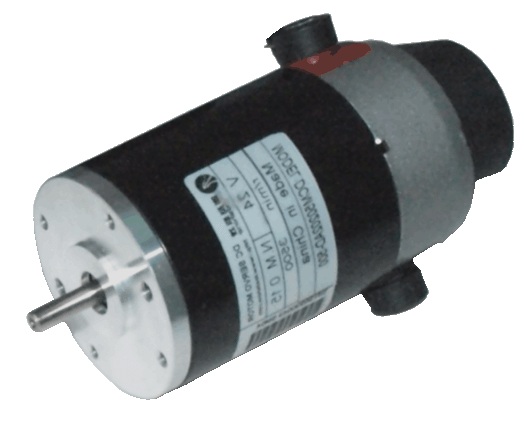

Tên: DCM50202A 50W Brushed DC Servo motor (Cập nhật: 20/04/2014)
Khối lượng
800 (gam)
Thể tích
550 (cm3)
Giá
Số lượng Đơn giá
1 2.500.000 VND
Còn lại
10+
Lượt xem
6.225
Tài liệu
Thông tin sản phẩm:
Ẩn nội dung

Features



  • Reliable industrial quality
  • High performance, Low cost
  • Rated voltage:24 VDC, Rated power: 50W
  • 54mm frame size
  • 3500 RPM rated speed / 4600 RPM peak
  • 4000 CPR (1000-line) incremental encoder

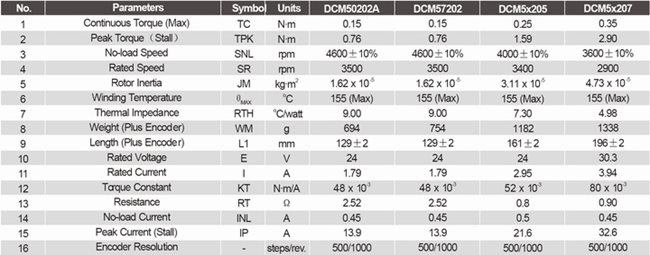

General


Wiring
  • Connection Table for Single-ended Encoder:



Pin

Colour

Connection (DCS303, DCS810/DCS810S)

1

Blue

Channel B (EB/EB+)

2

Yellow

Channel A (EA/EA+)

3

Red

VCC (E+5V/E+5V)

4

Black

Ground (EGND/EGND)

5

Green

Index/NC (NC/NC)







  • Connection Table for Differential Encoder:





Pin

Colour

Connection ( DCS810)

1

Black

Channel A+ (EA+)

2

Blue

Channel A- (EA-)

3

Yellow

Channel B+ (EB+)

4

Green

Channel B- (EB-)

5

Red

VCC (E+5V)

6

White

Ground (EGND)

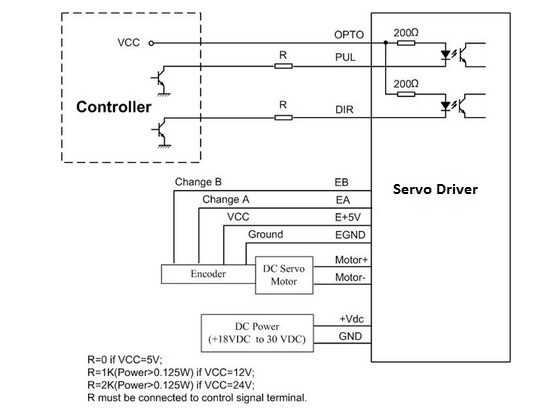

Typical Connection

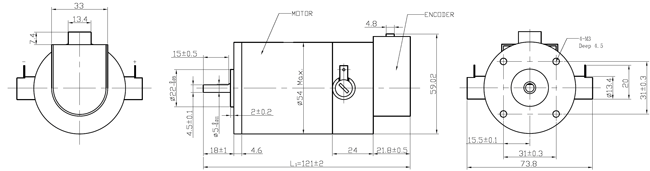

Mechanical
