Robot Technology Development - CMPS10 - Tilt Compensated Magnetic Compass

Product details

Click here for details

Name: CMPS10 - Tilt Compensated Magnetic Compass (Update: 29/10/2012)

Weight

10 (gam)

Volume

15 (cm3)

Price

Number of	Price
1	65.22 USD
5	63.48 USD
10	62.17 USD

Residual

Views

8,186

Document

Product information:

Hidden content

Voltage - 3.3v-5v only required
Current - 25mA Typ.
Resolution - 0.1 Degree
Accuracy - Horizontal, typically 0.5%
Accuracy - Tilted to +/- 60 degrees, typically 1%
Output 1 - I2C Interface, SMBUS compatible, 0-255 and 0-3599 , 100khz
Output 2 - Serial port, 9600 baud, no parity, 2 stop bits and 3.3v-5v signal levels
Output 3 - Timing Pulse 1mS to 37mS in 0.1mS increments
Small Size - 24mm x 18mm
Low Cost - Best Price Compass Module Available

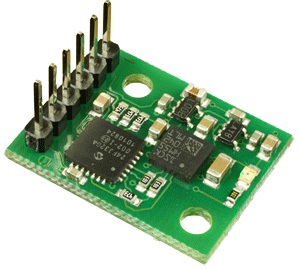

The CMPS10 module is a tilt compensated compass. Employing a 3-axis magnetometer and a 3-axis accelerometer and a powerful 16-bit processor, the CMPS10 has been designed to remove the errors caused by tilting of the PCB. The CMPS10 produces a result of 0-3599 representing 0-359.9 or 0 to 255.The output of the three sensors measuring x, y and z components of the magnetic field, together with the pitch and roll are used to calculate the bearing, each of these components are also made available in there raw form. We have also written examples of using the CMPS10 module with a wide range of popular controllers. The CMPS10 module requires a power supply at 3.3 - 5v and draws a nominal 25mA of current.
There are three ways of getting the bearing from the module. A serial interface, an I2C interface or a PWM output.

The Factory use pin is for our internal testing only, this pin should remain unconnected.

Data update frequency
Updates of the tilt compensated heading occur at 75hz with the data is filtered by means of a 45 sample buffer, this means a complete refresh of the buffer is achieved every 640ms. Raw data from the magnetometer and accelerometer is available every 13.3ms.

PCB Drilling Plan
The following diagram shows the CMPS10 PCB mounting hole positions.
