Tên: Stepper Drives (Cập nhật: 21/02/2014)
Khối lượng
0 (gam)
Thể tích
0 (cm3)
Giá
Số lượng Đơn giá
Còn lại
0
Lượt xem
3.699
Tài liệu
Thông tin sản phẩm:
Ẩn nội dung

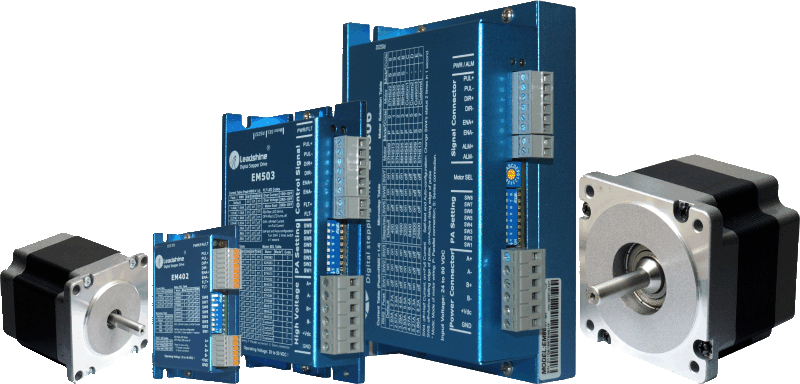

As the largest stepper drive designer and manufacturer around the world, Leadshine provides tens of models of stepper drives. From 2 phase to 3 phase, analog to DSP digital, DC input (18-80) to 110/120 AX or 220 / 220 AC input, Leadshine can provide the right stepper drives to satisfy the needs of your stepper control systems. Leadshine stepper products are well-known because of their wide choices, excellent performance, easy to use, high reliability, and low costs. Leadshine stepper drives have been implemented by thousands of OEM clients in the world from tens of industries such as CNC machinery, medical, electronics, semiconductor, packaging, lab automation.

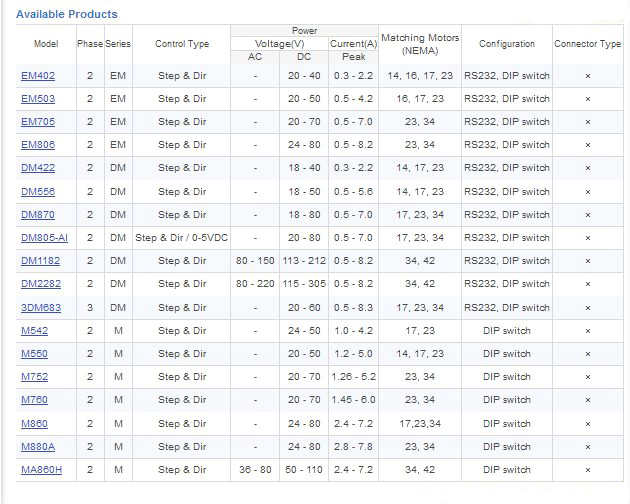

Leadshine offers three main series of stepper drives, the advanced digital EM series, digital DM series, and classic M series. The EM series stepper drives are 32-bit DSP-based and adopt Leadshine's latest stepper control technology with many advanced features. The high performance DM series digital stepper drives are featured with extra low noise, very low motor heating, and ultra smooth motor movements at low speed. With performance and costs balanced, Leadshine's M series stepper drives adopt pure sinusoidal control technology & anti resonance, and can offer excellent high speed performance.

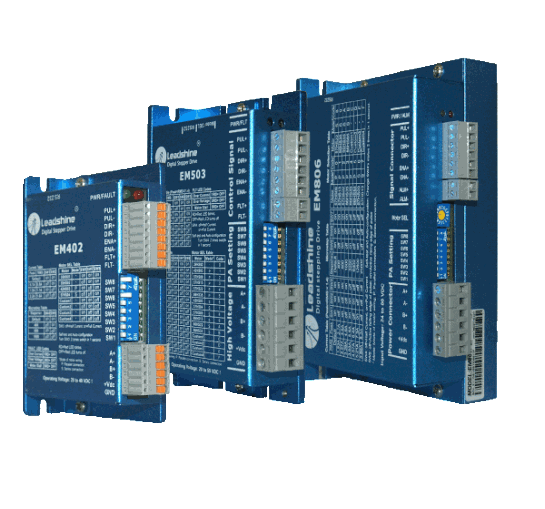

EM Series

Highlights

  • Advanced DSP-based current control algorithm
  • Sensorless stall detection
  • Low-middle speed anti-resonance
  • Extra low noise; extra low motor heating; smooth motor movement
  • Stored configurations for matched stepper motors of NEMA 14, 16, 17, 23, and 34
  • Easy setup via DIP switches for microstepping resolution and output current
  • Free software for fine tuning, output current, resolutions...
  • Automatic stepper motor identification and self configuration
  • Step & direction or CW/CCW control (EM402 and EM806 only support step & driection)

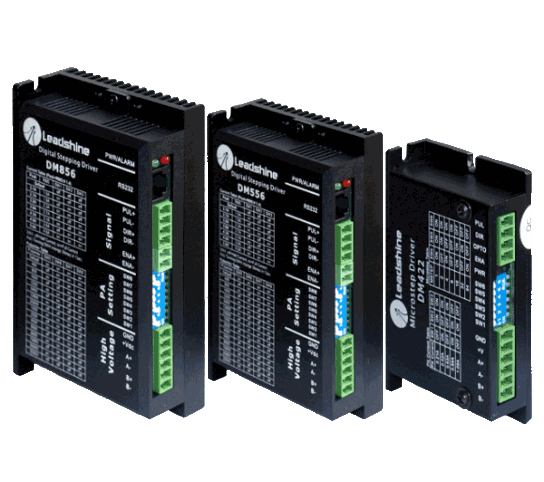

DM Series

Highlights

  • Step & direction or CW/CCW control
  • Advanced DSP-based current control algorithm
  • Low-middle speed anti-resonance
  • Extra low noise; extra low motor heating; smooth motor movement
  • Easy setup via DIP switches for microstepping resolution and output current
  • Free software for fine tuning, output current, resolutions...
  • Automatic stepper motor identification and self configuration

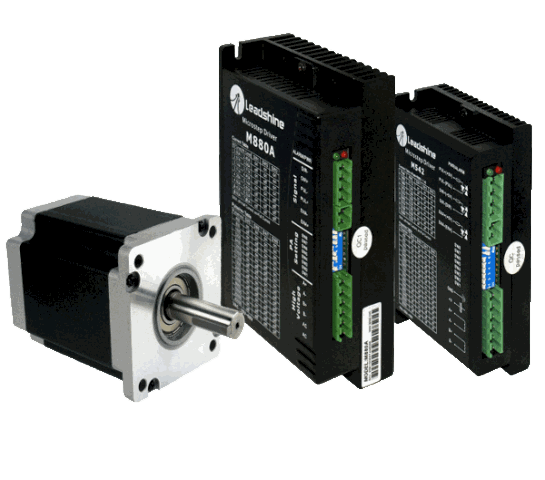

M Series

Highlights

  • Pure sinusoidal current control technology with less motor heating
  • Self-adjustment technology, providing optimal performance with different motors
  • 7 models, covering 20 VDC to 112VDC or 18 VAC to 80VAC operating voltage ranges
  • Excellent high-speed performance
  • Smoother movement at low-speed
  • Lower motor noise and heating than most analog stepper drives on the market
