Tên: 2 Phase Stepper Motors (Cập nhật: 21/02/2014)
Khối lượng
0 (gam)
Thể tích
0 (cm3)
Giá
Số lượng Đơn giá
Còn lại
0
Lượt xem
3.728
Tài liệu
Thông tin sản phẩm:
Ẩn nội dung

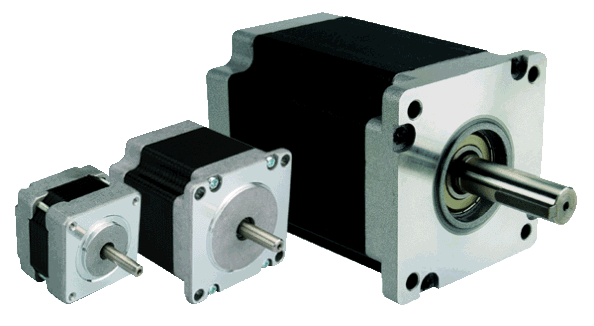

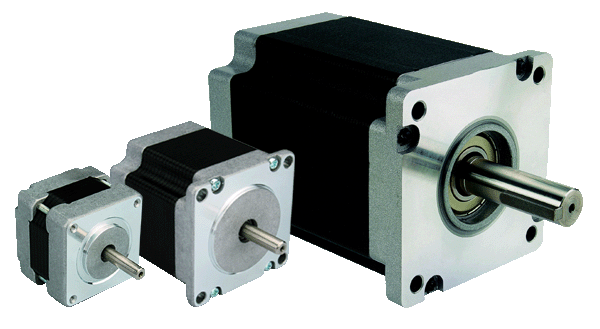

Leadshine offers high quality 2 phase 1.8° stepper motors made of high quality cold roll sheet copper and anti-high temperature permanent magnet. Those 2 phase stepper motors are available in frame size NEMA 14, 16, 17, 23, 34, or 42, with holding torque of 0.07 to 28 N.m (9.9 - 3,965 oz-in). Leadshine 2 phase stepper motors are highly reliable and generate low motor heating. They can move smoothly & quietly without no obvious resonance areas in the whole speed range.

Highlights

  • 2 phase 1.8° stepping angle
  • NEMA 14 to 42
  • Holding toque of 0.07 Nm to 28 N.m (9.9 - 3,965 oz-in)
  • High precision
  • Smooth movement
  • Low motor heating
  • Low movement noise

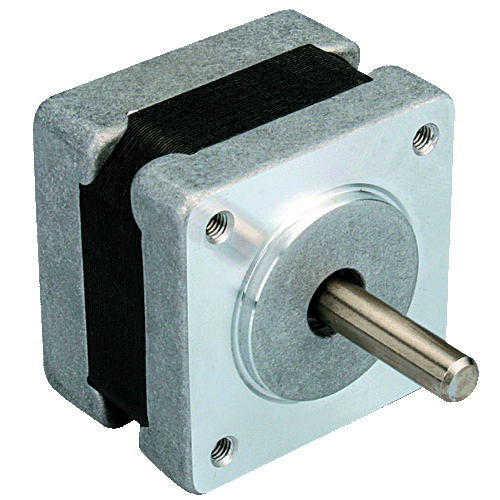

35HS Series

Highlights

  • 2 phase 1.8° stepping angle
  • NEMA 14
  • Holding toque 0.07 N*m (9.9  oz-in)
  • High precision
  • Smooth movement
  • Low motor heating
  • Low movement noise
Made of high quality cold roll sheet copper and anti-high temperature permanent magnet, Leadshine's stepper motors are highly reliable and generate low motor heating. Because of their nice internal damping characteristics, those stepping motors can run very smoothly and have no obvious resonance area within the whole speed ranges.
