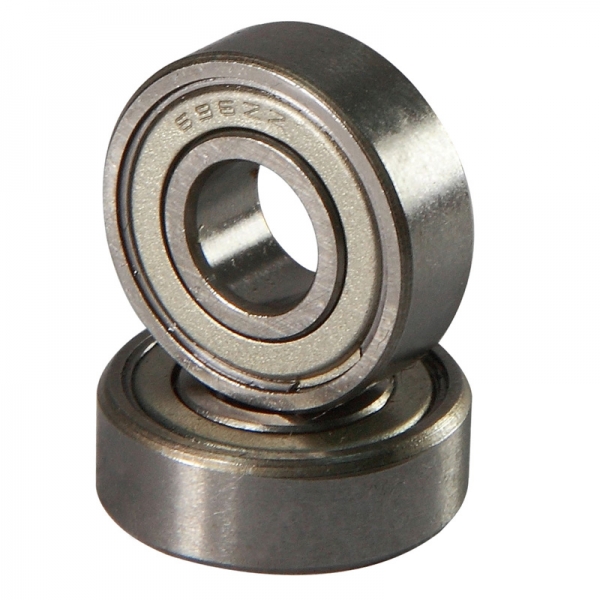

S696ZZ Shielded Ball Bearing, S696ZZ is made of stainless Steel with stainless Steel balls and steel cage, Bearing inner diameter is 6mm, Bearing outer diameter is 15mm and Bearing width is 5mm, S696ZZ bearing is closed with metal shields to protect the bearing from dust or any possible contamination, S696ZZ bearing is shielded and self lubricated, the quality is set to EMQ (electric motor quality) to ensure high speed, S696ZZ bearing is lubricated with grease.
Item: S696ZZ Ball Bearing
Type: Deep Groove Radial Ball Bearing
Dimensions: 6mm x 15mm x 5mm/Metric
Bearing Inner Diameter: 6mm
Bearing Outer Diameter: 15mm
Bearing Width: 5mm
Size: 6 x 15 x 5 mm
Cage: Stainless steel
Balls: stainless Steel
Material: Stainless Steel
Quality: Electric Motor Quality
Lubrication: Self Lubricated (Grease) Bearing
Closures: Double shielded with Metal shields Z/ZZ/2Z
Quantity: One Bearing
Dynamic load rating Cr: 1,750 N
Static load rating Cor: 670 N
Limiting Speed:
Grease Lubrication: 45,000 RPM
Equivalents: S696Z and S696-2Z Bearings
This is used bearing
