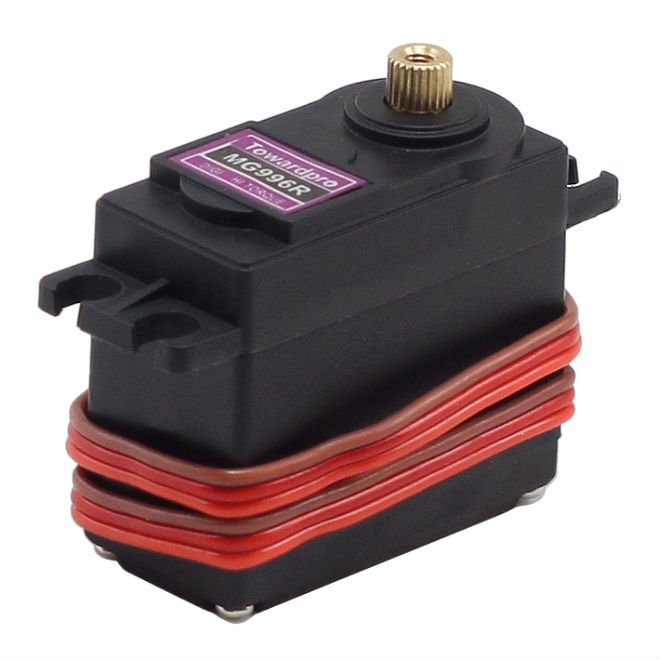

Name: MG996R 10.5KG Torque Metal Servo (Update: 28/08/2013)
Weight
60 (gam)
Volume
40 (cm3)
Price
Number of Price
1 7.17 USD
10 6.96 USD
Residual
10+
Views
3,733
Document
Product information:
Hidden content

Features:

Weight: 55g

Dimension: 40.7*19.7*42.9mm

Stall torque: 9.0kg/cm(4.8V),10.5kg/cm(6V)

 Operating speed:0.17sec/60degree(4.8v)0.14sec/60degree(6v)

Operating voltage: 4.8-7.2V

Temperature range: 0℃_ 55℃

 Dead band width:5us

This will be replacing the MG995.

MG995 Stall torque is 8.5kg/cm(4.8V),10kg/cm(6V) and Operating speed is 0.20sec/60degree(4.8v)0.16sec/60degree(6.0v). The MG996R has a little more Torque 9.0kg/cm(4.8V),10.5kg/cm(6V) and a little faster Operating speed 0.17sec/60degree(4.8v)0.14sec/60degree(6v). They have also upgraded the electronic board to an IC type board, for a much smoother action.
Connect Pin to Power :
Brown : GND
Red : V+
Yellow : signal
